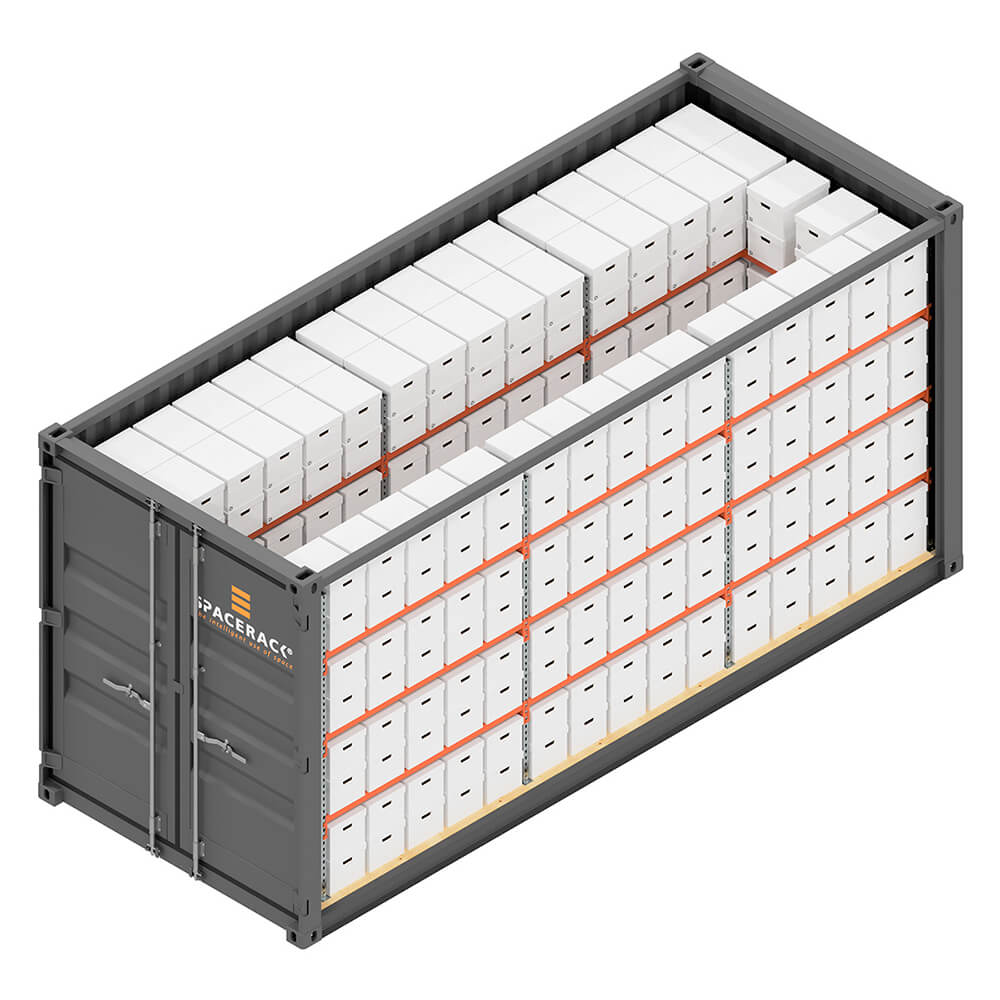

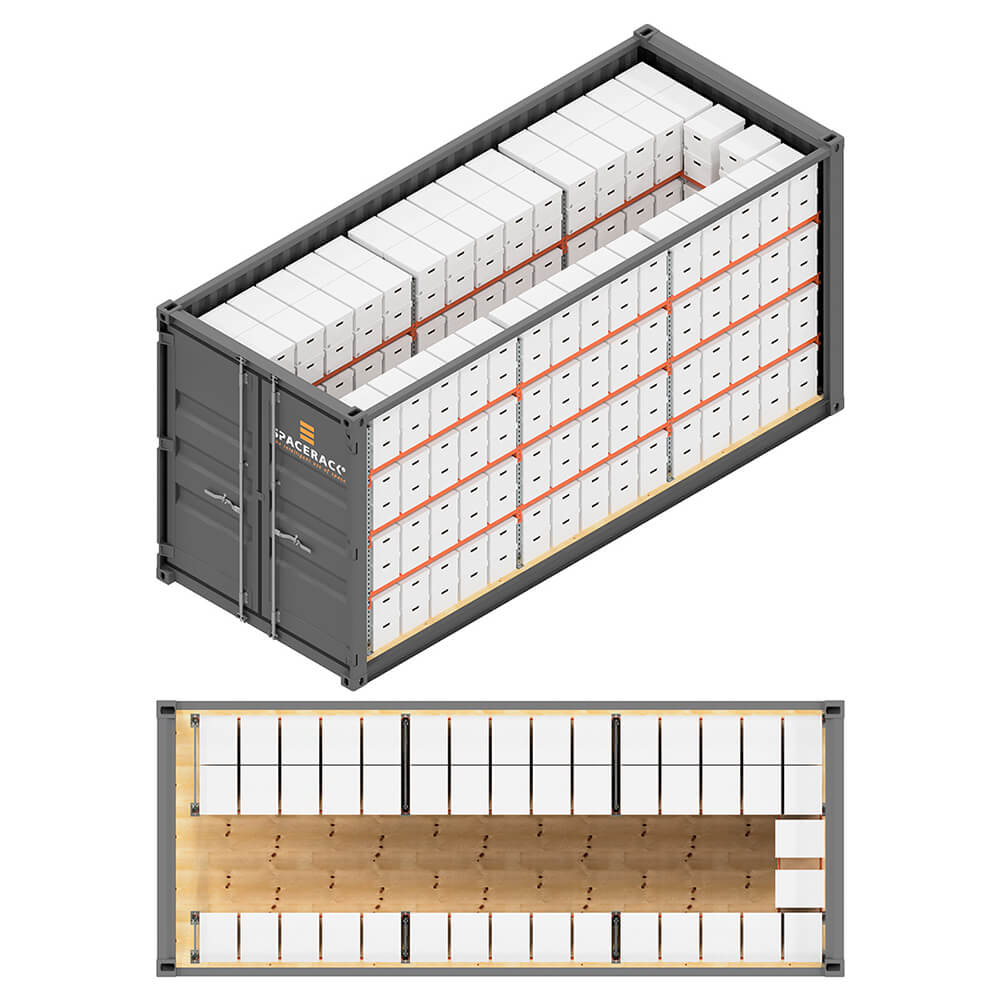

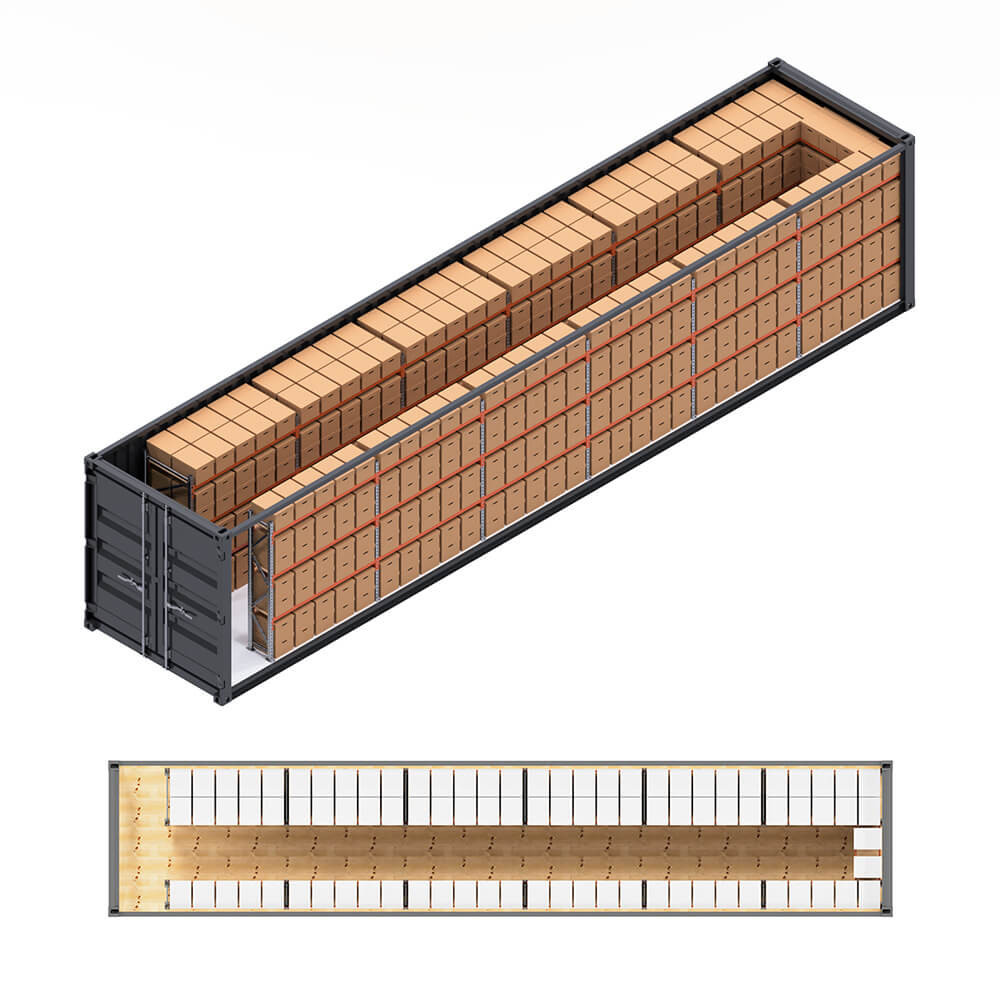

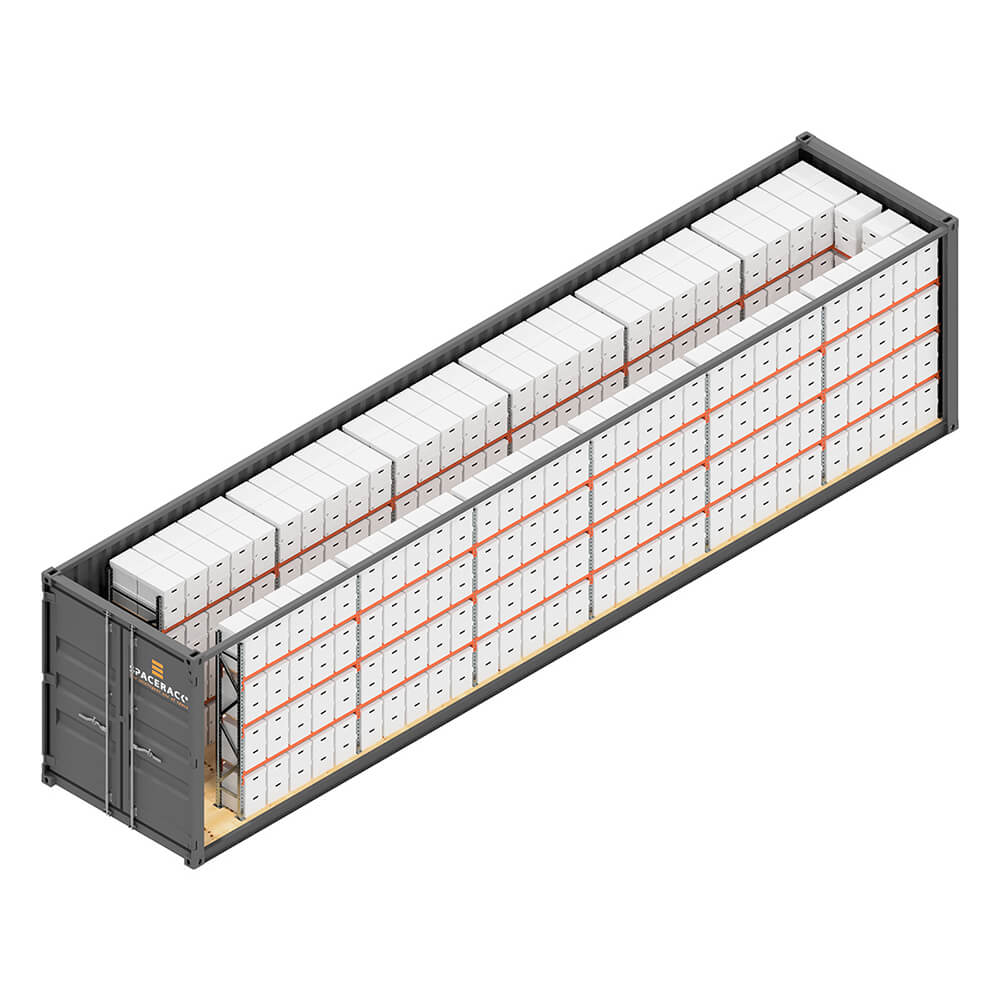

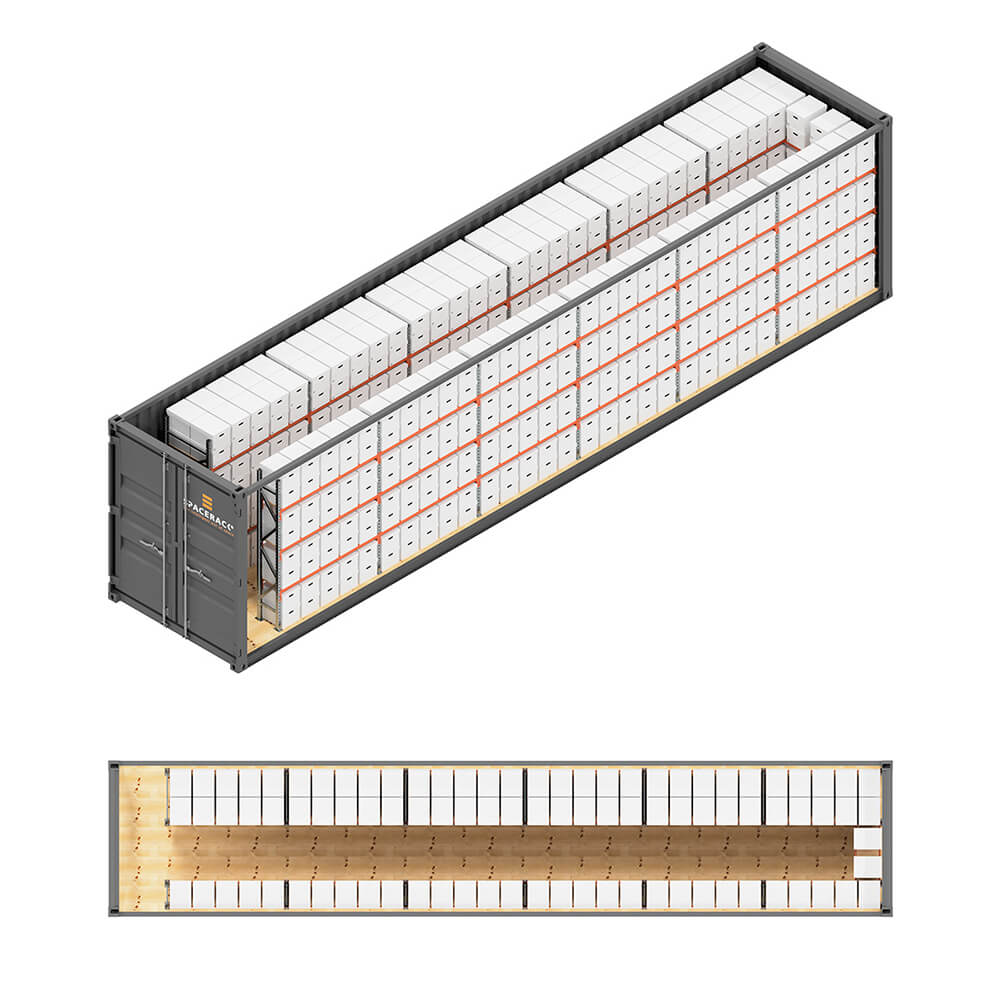

Archive shelving system installed in a 20 ft standard container with mixed bay depths, Inside view of 20 ft container showing bridge bay and 800mm deep shelving configuration, Full-length view of 40 ft high cube container with high-density archive box storage, High cube 40 ft container fully fitted with SPACERACK archive shelving holding archive boxes, Mixed bay depths (400mm and 800mm) configured for maximum storage efficiency, Archive boxes stored neatly across all shelf levels inside a container, End-to-end perspective showing multiple shelving bays installed in a 40 ft container, Interior of a 40 ft high cube container fitted with SPACERACK longspan shelving, configured for high-capacity archive storage using TL50 frames and beams., SPACERACK hook beam installed to create a bridge bay across container doors, maximising storage space at the container entry., Close-up of SPACERACK hook beam connection showing recessed step profile for shelf inset in bridge bay configuration.
  • Archive shelving system installed in a 20 ft standard container with mixed bay depths, Inside view of 20 ft container showing bridge bay and 800mm deep shelving configuration, Full-length view of 40 ft high cube container with high-density archive box storage, High cube 40 ft container fully fitted with SPACERACK archive shelving holding archive boxes, Mixed bay depths (400mm and 800mm) configured for maximum storage efficiency, Archive boxes stored neatly across all shelf levels inside a container, End-to-end perspective showing multiple shelving bays installed in a 40 ft container, Interior of a 40 ft high cube container fitted with SPACERACK longspan shelving, configured for high-capacity archive storage using TL50 frames and beams., SPACERACK hook beam installed to create a bridge bay across container doors, maximising storage space at the container entry., Close-up of SPACERACK hook beam connection showing recessed step profile for shelf inset in bridge bay configuration.
  • Archive shelving system installed in a 20 ft standard container with mixed bay depths, Inside view of 20 ft container showing bridge bay and 800mm deep shelving configuration, Full-length view of 40 ft high cube container with high-density archive box storage, High cube 40 ft container fully fitted with SPACERACK archive shelving holding archive boxes, Mixed bay depths (400mm and 800mm) configured for maximum storage efficiency, Archive boxes stored neatly across all shelf levels inside a container, End-to-end perspective showing multiple shelving bays installed in a 40 ft container, Interior of a 40 ft high cube container fitted with SPACERACK longspan shelving, configured for high-capacity archive storage using TL50 frames and beams., SPACERACK hook beam installed to create a bridge bay across container doors, maximising storage space at the container entry., Close-up of SPACERACK hook beam connection showing recessed step profile for shelf inset in bridge bay configuration.
  • Archive shelving system installed in a 20 ft standard container with mixed bay depths, Inside view of 20 ft container showing bridge bay and 800mm deep shelving configuration, Full-length view of 40 ft high cube container with high-density archive box storage, High cube 40 ft container fully fitted with SPACERACK archive shelving holding archive boxes, Mixed bay depths (400mm and 800mm) configured for maximum storage efficiency, Archive boxes stored neatly across all shelf levels inside a container, End-to-end perspective showing multiple shelving bays installed in a 40 ft container, Interior of a 40 ft high cube container fitted with SPACERACK longspan shelving, configured for high-capacity archive storage using TL50 frames and beams., SPACERACK hook beam installed to create a bridge bay across container doors, maximising storage space at the container entry., Close-up of SPACERACK hook beam connection showing recessed step profile for shelf inset in bridge bay configuration.
  • Archive shelving system installed in a 20 ft standard container with mixed bay depths, Inside view of 20 ft container showing bridge bay and 800mm deep shelving configuration, Full-length view of 40 ft high cube container with high-density archive box storage, High cube 40 ft container fully fitted with SPACERACK archive shelving holding archive boxes, Mixed bay depths (400mm and 800mm) configured for maximum storage efficiency, Archive boxes stored neatly across all shelf levels inside a container, End-to-end perspective showing multiple shelving bays installed in a 40 ft container, Interior of a 40 ft high cube container fitted with SPACERACK longspan shelving, configured for high-capacity archive storage using TL50 frames and beams., SPACERACK hook beam installed to create a bridge bay across container doors, maximising storage space at the container entry., Close-up of SPACERACK hook beam connection showing recessed step profile for shelf inset in bridge bay configuration.
  • Archive shelving system installed in a 20 ft standard container with mixed bay depths, Inside view of 20 ft container showing bridge bay and 800mm deep shelving configuration, Full-length view of 40 ft high cube container with high-density archive box storage, High cube 40 ft container fully fitted with SPACERACK archive shelving holding archive boxes, Mixed bay depths (400mm and 800mm) configured for maximum storage efficiency, Archive boxes stored neatly across all shelf levels inside a container, End-to-end perspective showing multiple shelving bays installed in a 40 ft container, Interior of a 40 ft high cube container fitted with SPACERACK longspan shelving, configured for high-capacity archive storage using TL50 frames and beams., SPACERACK hook beam installed to create a bridge bay across container doors, maximising storage space at the container entry., Close-up of SPACERACK hook beam connection showing recessed step profile for shelf inset in bridge bay configuration.
  • Archive shelving system installed in a 20 ft standard container with mixed bay depths, Inside view of 20 ft container showing bridge bay and 800mm deep shelving configuration, Full-length view of 40 ft high cube container with high-density archive box storage, High cube 40 ft container fully fitted with SPACERACK archive shelving holding archive boxes, Mixed bay depths (400mm and 800mm) configured for maximum storage efficiency, Archive boxes stored neatly across all shelf levels inside a container, End-to-end perspective showing multiple shelving bays installed in a 40 ft container, Interior of a 40 ft high cube container fitted with SPACERACK longspan shelving, configured for high-capacity archive storage using TL50 frames and beams., SPACERACK hook beam installed to create a bridge bay across container doors, maximising storage space at the container entry., Close-up of SPACERACK hook beam connection showing recessed step profile for shelf inset in bridge bay configuration.
  • Archive shelving system installed in a 20 ft standard container with mixed bay depths, Inside view of 20 ft container showing bridge bay and 800mm deep shelving configuration, Full-length view of 40 ft high cube container with high-density archive box storage, High cube 40 ft container fully fitted with SPACERACK archive shelving holding archive boxes, Mixed bay depths (400mm and 800mm) configured for maximum storage efficiency, Archive boxes stored neatly across all shelf levels inside a container, End-to-end perspective showing multiple shelving bays installed in a 40 ft container, Interior of a 40 ft high cube container fitted with SPACERACK longspan shelving, configured for high-capacity archive storage using TL50 frames and beams., SPACERACK hook beam installed to create a bridge bay across container doors, maximising storage space at the container entry., Close-up of SPACERACK hook beam connection showing recessed step profile for shelf inset in bridge bay configuration.
  • Archive shelving system installed in a 20 ft standard container with mixed bay depths, Inside view of 20 ft container showing bridge bay and 800mm deep shelving configuration, Full-length view of 40 ft high cube container with high-density archive box storage, High cube 40 ft container fully fitted with SPACERACK archive shelving holding archive boxes, Mixed bay depths (400mm and 800mm) configured for maximum storage efficiency, Archive boxes stored neatly across all shelf levels inside a container, End-to-end perspective showing multiple shelving bays installed in a 40 ft container, Interior of a 40 ft high cube container fitted with SPACERACK longspan shelving, configured for high-capacity archive storage using TL50 frames and beams., SPACERACK hook beam installed to create a bridge bay across container doors, maximising storage space at the container entry., Close-up of SPACERACK hook beam connection showing recessed step profile for shelf inset in bridge bay configuration.
  • Archive shelving system installed in a 20 ft standard container with mixed bay depths, Inside view of 20 ft container showing bridge bay and 800mm deep shelving configuration, Full-length view of 40 ft high cube container with high-density archive box storage, High cube 40 ft container fully fitted with SPACERACK archive shelving holding archive boxes, Mixed bay depths (400mm and 800mm) configured for maximum storage efficiency, Archive boxes stored neatly across all shelf levels inside a container, End-to-end perspective showing multiple shelving bays installed in a 40 ft container, Interior of a 40 ft high cube container fitted with SPACERACK longspan shelving, configured for high-capacity archive storage using TL50 frames and beams., SPACERACK hook beam installed to create a bridge bay across container doors, maximising storage space at the container entry., Close-up of SPACERACK hook beam connection showing recessed step profile for shelf inset in bridge bay configuration.
  • Archive shelving system installed in a 20 ft standard container with mixed bay depths, Inside view of 20 ft container showing bridge bay and 800mm deep shelving configuration, Full-length view of 40 ft high cube container with high-density archive box storage, High cube 40 ft container fully fitted with SPACERACK archive shelving holding archive boxes, Mixed bay depths (400mm and 800mm) configured for maximum storage efficiency, Archive boxes stored neatly across all shelf levels inside a container, End-to-end perspective showing multiple shelving bays installed in a 40 ft container, Interior of a 40 ft high cube container fitted with SPACERACK longspan shelving, configured for high-capacity archive storage using TL50 frames and beams., SPACERACK hook beam installed to create a bridge bay across container doors, maximising storage space at the container entry., Close-up of SPACERACK hook beam connection showing recessed step profile for shelf inset in bridge bay configuration.

SPACERACK Archive Container Storage

SR-20ft-Container-Storage
$2,372
Condition
New
Availability
Next Day Delivery
Range
SPACERACK
Assembled?
Flat Packed

$2,372

Australian Made Logo featuring a kangaroo on a green triangle background

Australian Made Product

Proudly manufactured right here in Australia using locally sourced materials. Support local industry with a product made to Australian standards.

  • Australian Owned Australian Designed Australian Manufactured
  • SPACERACK Lifetime Guarantee Learn More
  • Strong and Tough

    Frames made from strong and reliable Australian Steel made tough. Safe and reliable.

  • Easy to Assemble

    Beams just clip into frames, shelves into the beams. That's it, Ready to use!

  • Modular and Adaptable

    Can be highly customised to suit any use

SPACERACK Archive Container Storage

The SPACERACK Archive Container Storage System is the ultimate high-density, space-optimised shelving solution for container-based archive storage. Proudly Australian made, it’s built tough with high-tensile pre-galvanised steel and designed to maximise capacity in both standard and high cube shipping containers. Engineered for durability and ease of use, SPACERACK's Archive Container Storage is a reliable solution for secure and accessible long-term document storage. Whether you’re outfitting a mobile archive or a static storage container, trust in a locally manufactured system that delivers on quality and performance.

Call ABSOE on: (07) 3846 9975

Bay Configuration Specifications

Number of Bays 20 ft Containers: 3 x 400mm D Bays, 3 x 800mm D Bays, 1 x 900mm L Bridge Bay
40 ft Containers: 6 x 400mm D Bays, 3 x 800mm D Bays, 1 x 900mm L Bridge Bay
Number of Archive Boxes Stored 20 ft Container: 329 Archive Boxes
20 ft High Cube Container: 376 Archive Boxes
40 ft Container: 644 Archive Boxes
40 ft High Cube Container: 736 Archive Boxes
Bay Height
(Frame Height)		 Standard Containers: 2100mm High
High Cube Containers: 2400mm High
Beam Length 1800mm Long
Overall Bay Width 1900mm Wide
(Beam Length + 100mm)
Bay Depth
(Frame Depth)		 400mm & 840mm Deep
Shelf Levels per Bay 3 Shelf Levels per bay
Frame Steel 1.5mm Thick High-Tensile Australian Pre-Gal Steel

Shelf Level Specifications

Beam Profile 60mm × 40mm Chair Section
Recessed Stepped Profile to inset shelves
Beam Length 900mm Hook Beam & 1800mm Standard Beam
Safe Working Load per Level
Beam Length Safe Working Load per Level (KG)
900mm 500 KG
1800mm 500 KG
Shelf Material
(Infill)

18mm Particle Board

Steel shelves and mesh infills are also available

  • Built on the Proven TL50 System: Utilises the versatile SPACERACK TL50 Longspan Shelving, engineered for strength, adaptability, and container-fit functionality.

  • Designed for Container Storage: Purpose-built configurations to suit 20 ft and 40 ft standard and high cube shipping containers, maximising archive box capacity.

  • Modular & Versatile Design: TL50’s modular system allows each bay to be configured with a mix of 400mm, 800mm, and bridge bays for optimal use of space.

  • Australian Made Quality: Manufactured in Brisbane using 1.5mm high-tensile pre-galvanised Australian steel for frames and 60×40mm step-section beams.

  • High Load Capacity: Each shelf level supports up to 500 kg, providing heavy-duty performance even in compact spaces.

  • Efficient Multi-Level Storage: Standard 3-level shelving per bay ensures dense storage without sacrificing accessibility.

  • Customisable Options: Available in different bay depths and beam lengths. Custom configurations available via enquiry to suit specific storage needs.

  • Durable Shelf Infills: Supplied with 18mm particle board shelves as standard. Optional steel and mesh shelf infills are also available.

  • Quality Finish: Features powder-coated SPACERACK orange beams and footplates with pre-galvanised steel frames. Alternative finishes available on request.

  • Multiple Applications: Ideal for:
    • Document and archive box storage
    • Mobile or on-site archive setups
    • Container-based records management
    • Secure, scalable storage systems for businesses or facilities
  • Container Capacities:
    • 329 boxes in a 20 ft Container
    • 644 boxes in a 40 ft Container
    • 376 boxes in a 20 ft High Cube
    • 736 boxes in a 40 ft High Cube

Available Beam Colours

Standard Beam Finishes

  • SPACERACK Orange Gloss
  • Hot Dip Galvanised + Additional Cost

Non-Standard Beam Finishes

Additional Lead Times and Cost Applies - Contact Us for Information

  • Monument Matte
  • Bright White Gloss
  • Black Gloss
  • Blaze Blue Gloss
  • Safety Yellow Gloss
  • White Vienna Gloss
  • Custom Colour Contact Us for a Quote
