Archive Shelving

spacerack-archive-shelving-sb

$389

Condition

New

Availability

Next Day Delivery

Range

SPACERACK

Assembled?

Flat Packed

Australian Made Product

Proudly manufactured right here in Australia using locally sourced materials. Support local industry with a product made to Australian standards.

Australian Owned Australian Designed Australian Manufactured
SPACERACK Lifetime Guarantee Learn More
Strong and Tough
Frames made from strong and reliable Australian Steel made tough. Safe and reliable.
Easy to Assemble
Beams just clip into frames, shelves into the beams. That's it, Ready to use!
Modular and Adaptable
Can be highly customised to suit any use

SPACERACK Archive Shelving

Archive shelving does not include archive boxes.

SPACERACK® Archive Shelving system is a durable, free-standing storage solution, proudly made in Brisbane from high-tensile Australian pre-galvanised steel. Designed to store up to 40 archive boxes per bay, each unit stands 2400mm high, 1900mm wide, and 450mm deep, with three strong shelf levels supported by particle board infills. With a 1.5mm thick frame and 1800mm beam length, it offers heavy-duty performance ideal for commercial and industrial archive rooms. SPACERACK® Archive Shelving combines strength, versatility, and clean presentation, with custom beam lengths, frame heights, and weight loadings available on request — perfect for scalable, high-density storage needs.

Call ABSOE on: (07) 3846 9975

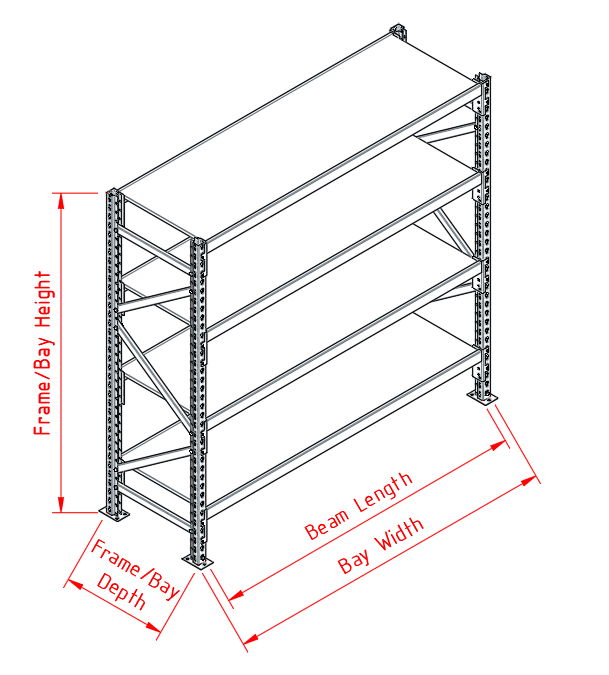

Bay Configuration Specifications

Bay Height (Frame Height)	2400mm High
Beam Length	1800mm Long
Overall Bay Width	1900mm Wide (Beam Length + 100mm)
Bay Depth (Frame Depth)	450mm Deep
Number of Archive Boxes Stored	40 Boxes Stored
Shelf Levels per Bay	3 Shelf Levels per bay
Frame Steel	1.5mm Thick High-Tensile Australian Pre-Gal Steel

Shelf Level Specifications

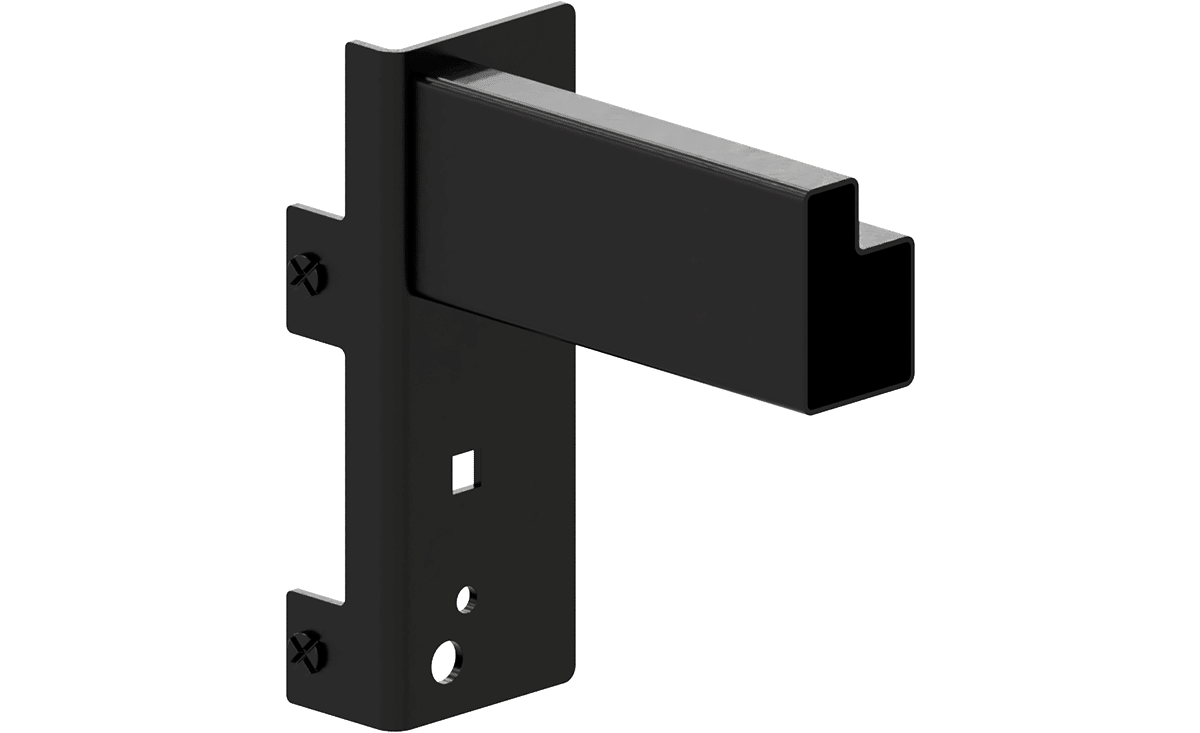

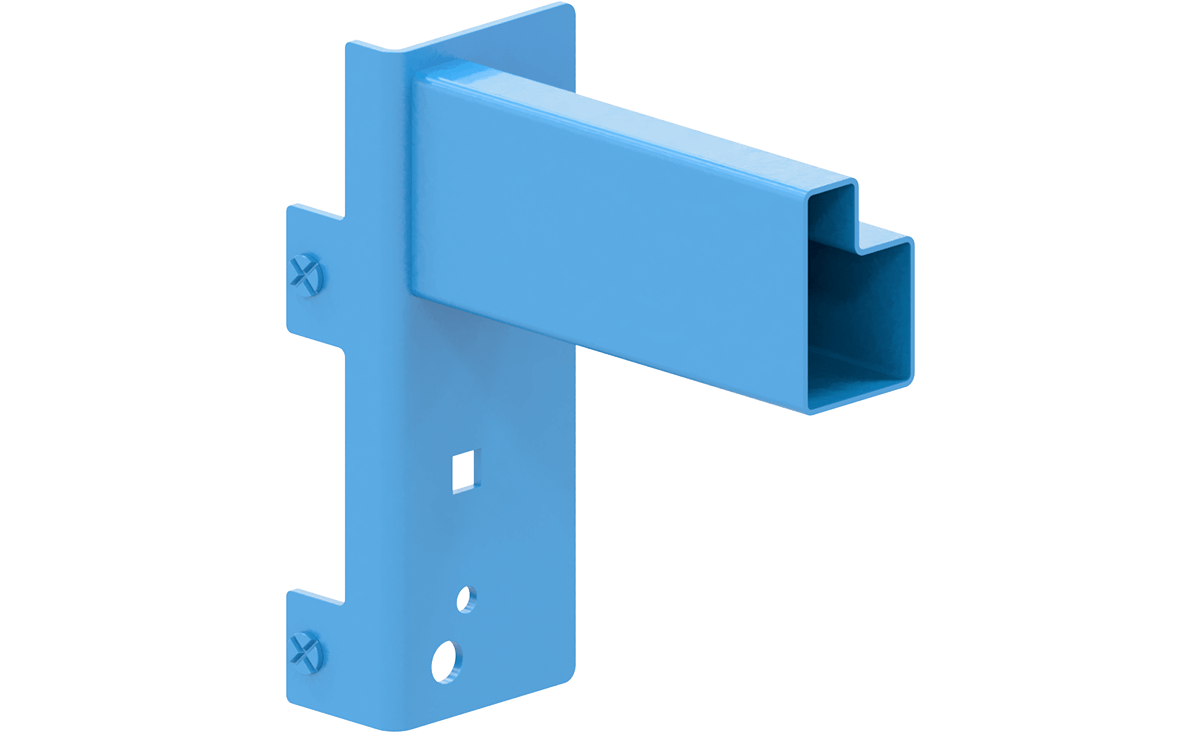

Beam Profile

60mm × 40mm Chair Section
Recessed Stepped Profile to inset shelves

Beam Length

1800mm Standard Beam

Safe Working Load per Level

Beam Length	Safe Working Load per Level (KG)
1800mm	500 KG

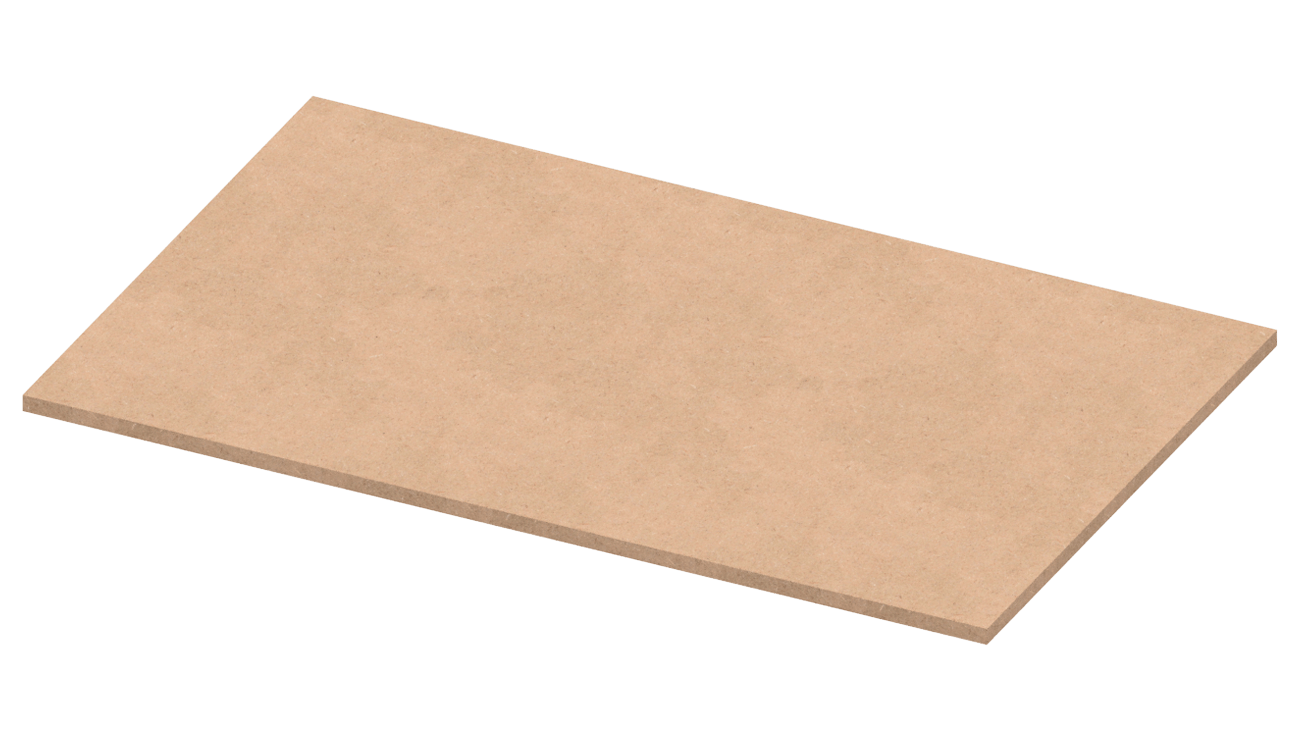

Shelf Material
(Infill)

18mm Particle Board

Steel shelves and mesh infills are also available

Australian-Made Construction: Crafted from high-tensile, Australian pre-galvanised steel, SPACERACK® Archive Shelving is proudly designed and manufactured in Australia, ensuring top-tier quality and reliability. The robust materials are built to withstand tough environments and provide long-lasting performance.

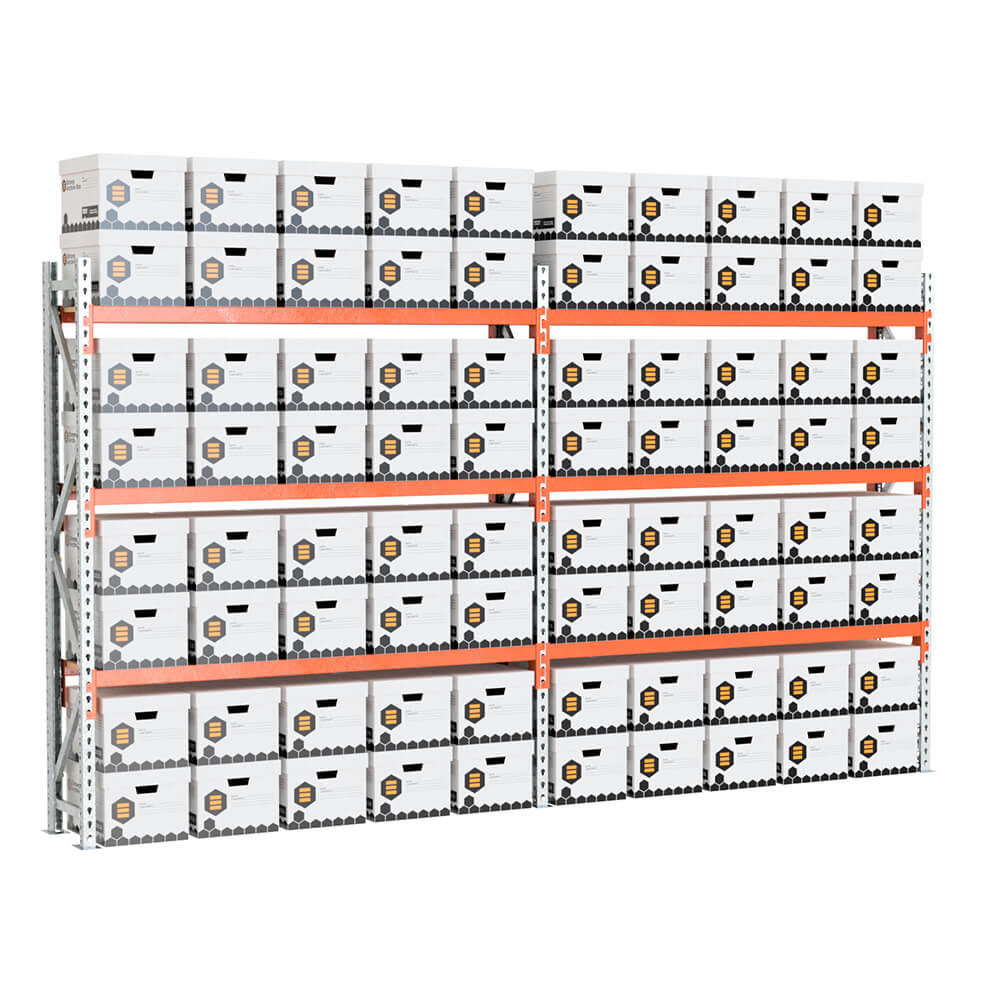

Optimised Storage Capacity: Each bay is designed to hold up to 40 standard archive boxes, with the ability to double-stack boxes on each shelf for maximum storage efficiency. This setup makes it ideal for businesses with high-density document storage needs.
Customisable Shelf Levels: With three shelf levels per bay, the shelving system provides flexibility for different archive box sizes and items, while the particle board infills ensure durability and stability for heavier loads.
Heavy-Duty Frame Construction: The shelving’s 1.5mm thick high-tensile steel frame guarantees strength, even in demanding commercial and industrial archive environments. Its design ensures minimal flexing and maximum load-bearing capacity.
Free-Standing Design: The SPACERACK® system is free-standing, meaning no additional wall-fixing is required. This design provides easy installation and relocation, offering flexibility when rearranging or expanding your storage space.
Space-Efficient Dimensions: The bay height of 2400mm, width of 1900mm, and depth of 450mm allows for an optimal balance between space utilisation and accessibility. The shelving is perfect for archiving a large volume of documents in tight spaces without compromising on organisation.
Durable Particle Board Infills: Included with each shelving unit are particle board infills that support the weight of stored items, ensuring stability and reliability over time. These infills are strong, easy to install, and designed to last.
Wide Range of Sizing Options: While the standard beam length is 1800mm, custom beam lengths, frame heights, and weight loadings are available to suit specific storage requirements. Whether you need a higher weight capacity or a different size for your storage room, we can tailor the shelving to meet your needs.
Flexible Storage Configurations: SPACERACK® Archive Shelving is easy to assemble and can be reconfigured to suit various layouts. Its modular design allows for quick expansion or adjustment of the system as your storage needs evolve.
Scalable High-Density Storage: Ideal for environments requiring high-density, organised storage, such as offices, libraries, warehouses, and archives. Its ability to efficiently store a large volume of boxes makes it a practical solution for businesses looking to optimise space and streamline operations.
Professional Aesthetic: With its clean and sturdy appearance, the shelving system enhances the presentation of your archive space, ensuring your documents and items are stored in an organised, professional manner.
