Used Galvanised Pallet Racking Bay Kits

• Cost Effective

  High quality used racking is a very cost-effective solution to storage needs.

• Fast Turnaround, Brisbane Stock

  Manufactured & Stored locally in Brisbane. Fast turnaround for collection or fast shipping Australia-wide.

• AS4084:2023

  Meets Australian Standard AS4084:2023 for safe, compliant racking (With Post Protectors and End Barriers sold separately)

• Strong and Tough

  Extra-thick 2.4mm gauge steel makes the frames strong and tough.

• Easy to Assemble

  Frames are newly manufactured and pre-assembled. Beams just clip into frames. That's it, Ready to use!

• Modular, Adaptable, Scalable.

  Expand with additional bays, beam levels, or custom sizes. Easily scaled to grow with your needs.

Used Galvanised Selective Pallet Racking Bay Kits

ABSOE's Used Galvanised Selective Racking bay kits provide an easily ordered and highly cost effective options for our customers ideal for use in the most extreme environments. These kits combine brand-new manufactured frames with high quality used beams.

Our Galvanised Selective Pallet Racking Bay Kits are offered here to provide our customers racking that is ideal for use in environments exposed to moisture and the elements, such as freezers or external to a building. Our staff are also on call to provide assistance for individual storage needs and can assist with design, installation and compliance.

Our Kits provide an economical and practical storage solution that meets the AS4084:2023 Standard for safety and compliance (when combined with appropriate Post Protectors and End barriers - sold separately).

The kits are pre-packaged and are supplied with all fixings / signage . The frames are preassembled for ease and speed of installation, simple to adjust, and in most cases can also be tailored re extra components etc to suit your individual needs.

All pricing includes: pre-assembled frames, beams, beam clips, footplates, floor anchor fastenings, and signage.

Kit Bay Configurations listed here range from six to ten standard Australian pallets with a default load rating of 1250 kg per pallet SWL. Stand the pre-assembled frames and the beams simply clip in for an extremely fast setup. Perfect for warehouses, logistical operations, and can even be turned into high-strength industrial shelving with the addition of mesh decks (available separately).

Need even more storage? Additional bays and sizes are in stock. Back-to-back aisle setups are also supported - just ask us about row spacers for aisle configurations.

All stock is held on-site at our Brisbane warehouse, ready for pickup or fast shipping Australia-wide. Need help with setup? We have a team of experienced local installers ready to assist.

ABSOE is proudly Australian owned and stocks a huge range of various brands and sizes. If you need something not displayed here get in contact with us and our racking experts will be glad to assist.

Call ABSOE on:(07) 3846 9975

Pallet Racking Bay Kit Components

Image	Description
	End Frames Frames used on each end of a Pallet Racking run are required by AS4084:2023 to reach at least half the height of the top pallet.
	Intermediate Frames Installed between end frames, intermediate frames provide the main structure of the pallet racking run. This is the frame referred to when describing the height of a frame in the pallet racking structure.
	Pallet Racking Beams (with Clips) Horizontal load-bearing members that connect frames and support palletised goods, supplied with locking clips for safety compliance.
	Safe Working Load Safety Sign Signage displaying maximum permissible loads per level and bay, mandated under AS4084:2023 for workplace safety.
	Footplate Floor Anchor Fasteners Heavy-duty fixings used to secure racking frames to the floor, ensuring structural stability and compliance with safety standards.

Pallet Racking End Barriers Protects Racking Frames Used on End Frames Manufactured in Australia

Pallet Racking Post Protectors Protects Racking Uprights Multiple Types Available

Pallet Racking Safe Working Load Signage AS4084:2023 Suitable Multiple Types Available Please Enquire Call Us

Post Protectors, End Barriers, and Signage

Make your racking AS4084:2023 compliant, safe, and protected by adding Post Protectors and End Barriers, sold separately.

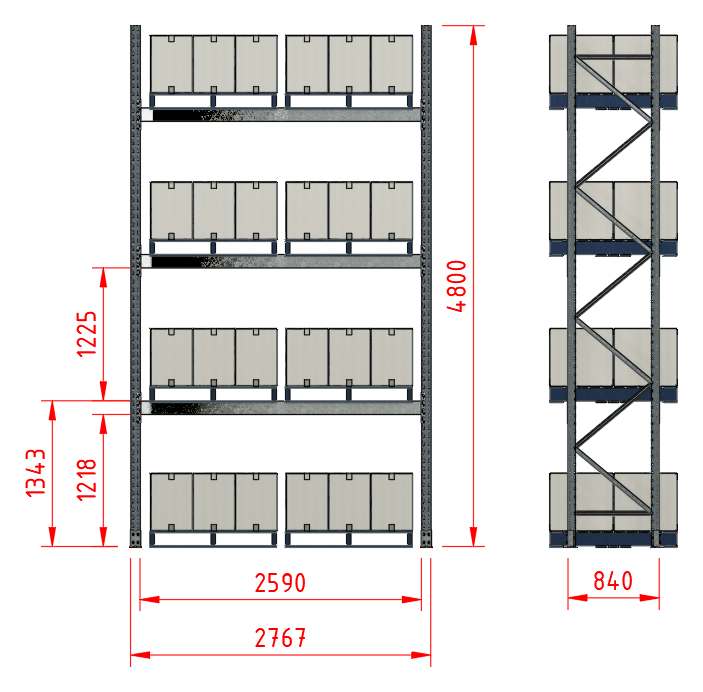

Frame Height	Intermediate Frame Height End Frame Height Note that the end frames are required to be taller to meet AS4084:2023 3600mm 4200mm 4200mm 4800mm 4800mm 5625mm 6000mm 6825mm
Frame Width	840mm
Beam Length	2590mm
Beam Profile	125mm × 50mm Box Beam
Beam Capacity	2500 kg per Beam Pair UDL (1250 kg per Pallet)
Overall Run Width	Number of Bays 2590 mm Beams 1 2767 mm 2 5447 mm 3 8127 mm 4 10807 mm
Finish	Frames Pre-Galvanised Beams Hot Dip Galvanised
