Gravity Steel Roller Conveyors
Gravity Steel Roller Conveyors
Speed up your workflow with our Gravity Steel Roller Conveyors—a reliable, low-maintenance solution for efficient material handling. Built with a tough powder-coated frame and zinc-plated rollers, these conveyors are designed to handle daily wear while keeping goods moving smoothly. Available in multiple lengths, widths, and roller pitches, with adjustable height to suit your operation, they’re perfect for warehouses, packing lines, and dispatch areas where flexibility and durability matter.
- Available bed lengths: 1500mm and 3000mm
- Roller widths: 400mm (470mm external) and 600mm (670mm external)
- Adjustable height: 600mm to 900mm to suit different applications
- Durable powder-coated blue steel frame for long-lasting performance
- Zinc-plated rollers for corrosion resistance and smooth operation
- Multiple roller pitch options:

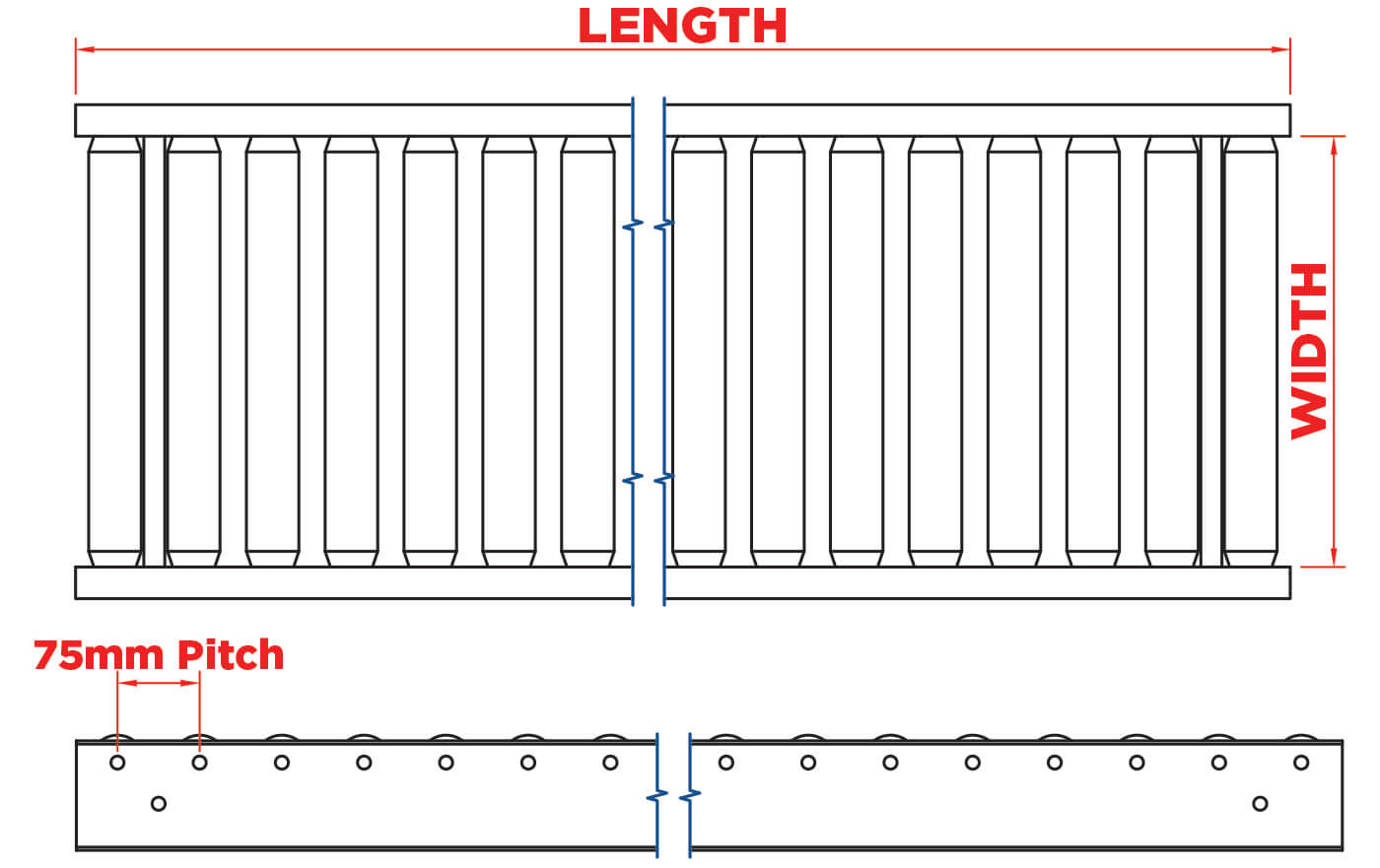

- 75mm pitch: 20 rollers (1500mm) / 40 rollers (3000mm)

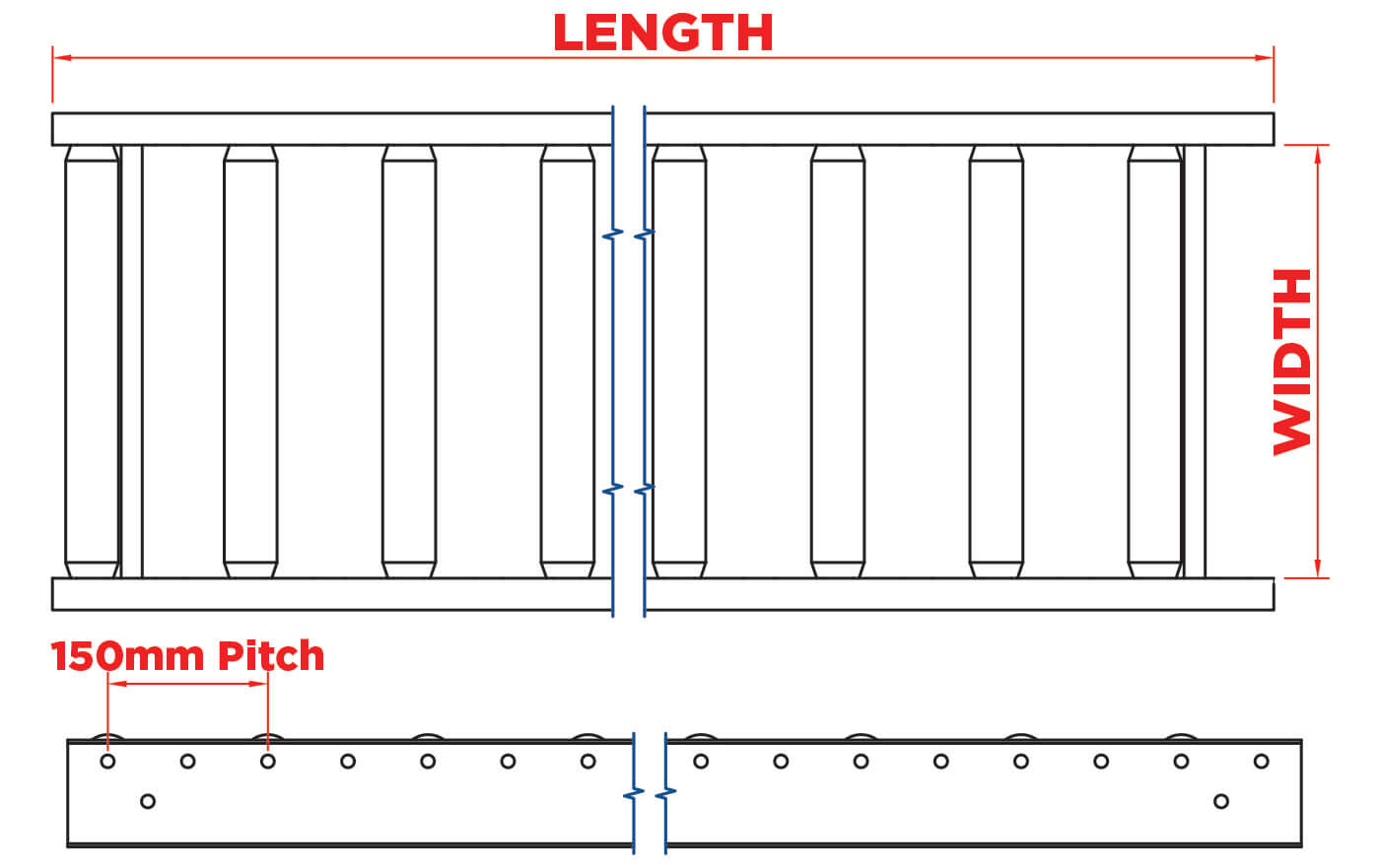

- 150mm pitch: 11 rollers (1500mm) / 21 rollers (3000mm)

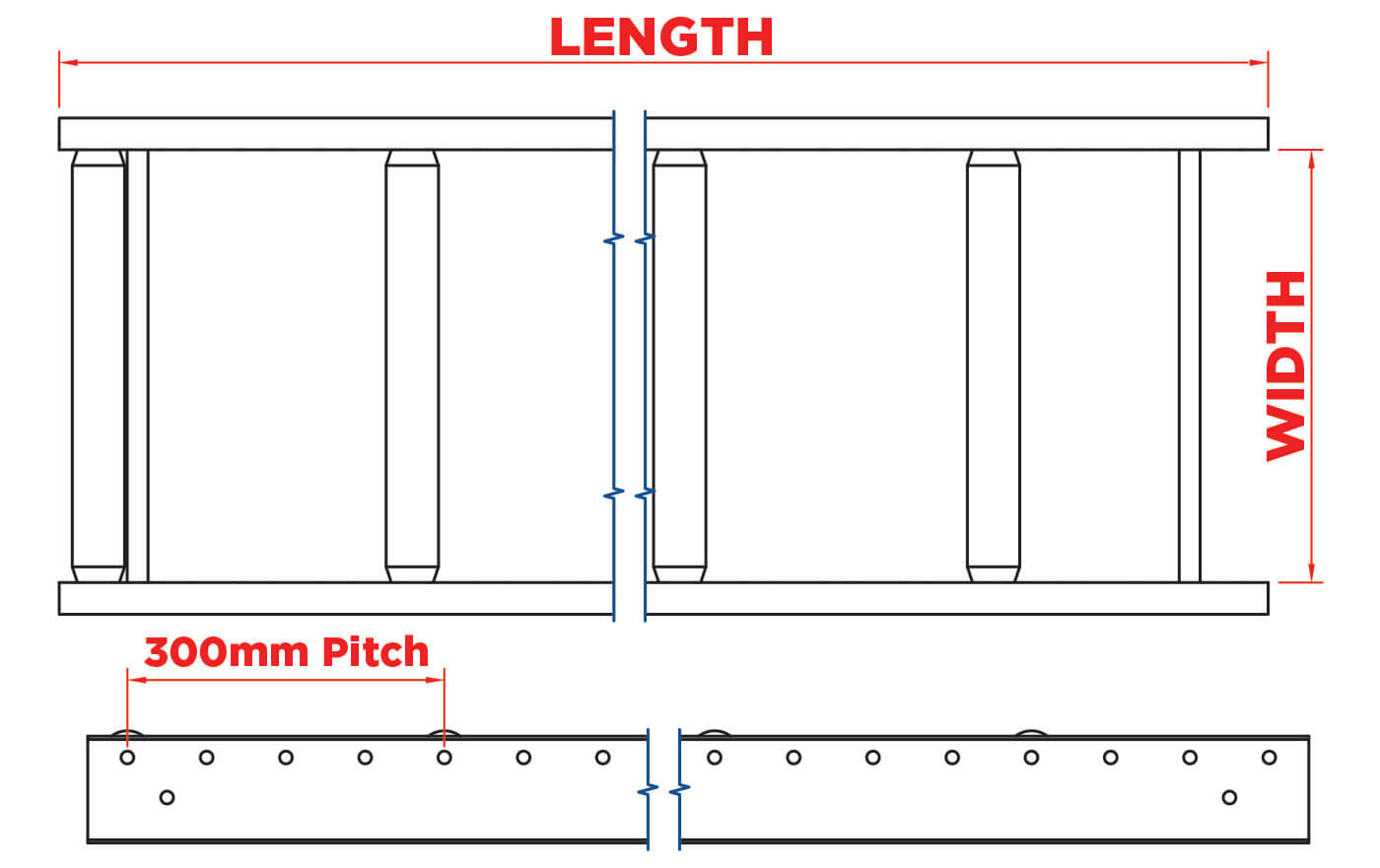

- 300mm pitch: 6 rollers (1500mm) / 11 rollers (3000mm)
- Load capacity:
- 400mm wide: 50kg per roller
- 600mm wide: 40kg per roller
- Max bed load capacity:
- 400kg with 2 support legs

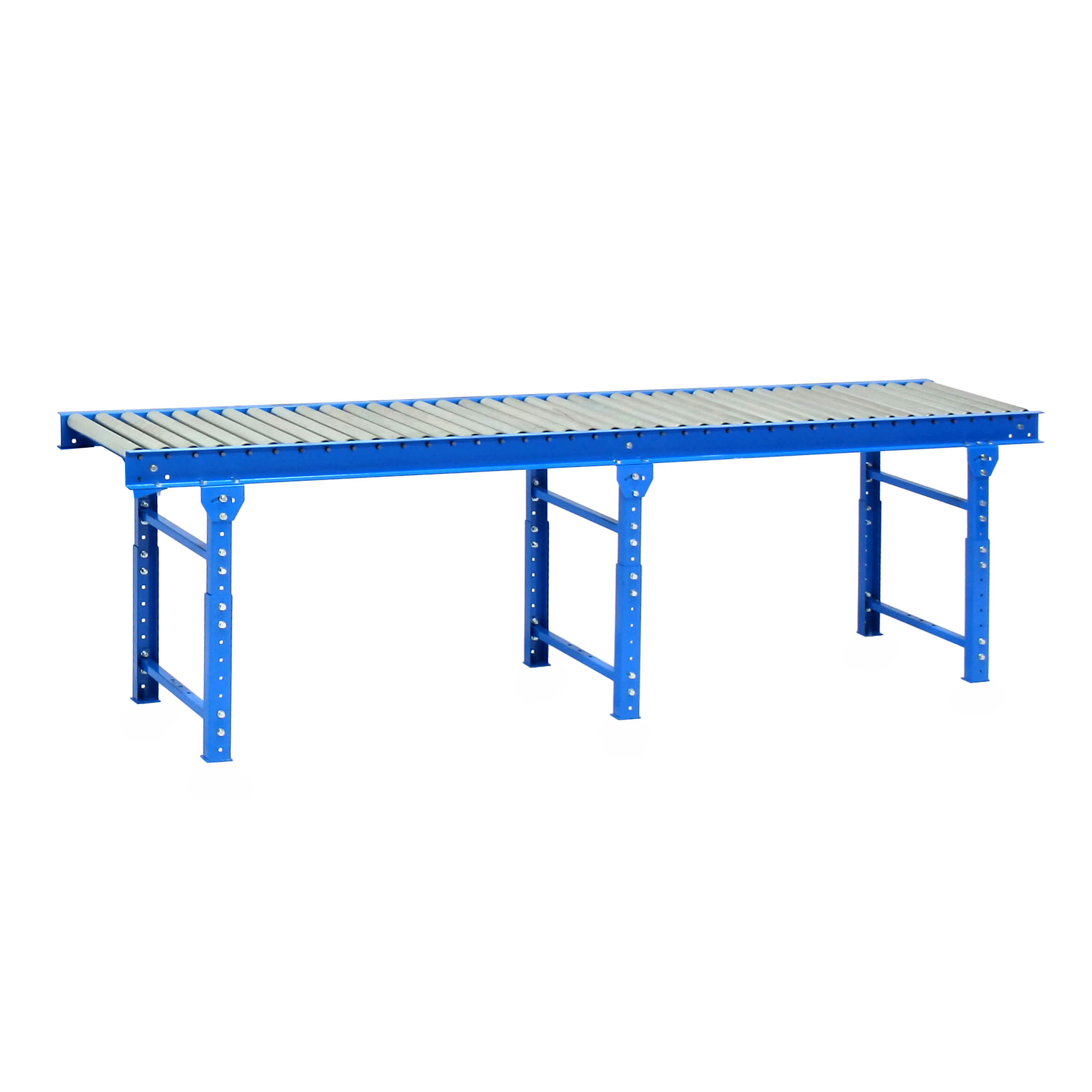

- 1000kg with 3 support legs
- Ideal for warehouses, dispatch zones, packing stations, and assembly lines
| Bed Lengths | 1500mm long and 3000mm Long |
| Roller Widths | 300mm Wide (370mm external) 400mm Wide (470mm external) 600mm Wide (670mm external) |
| Adjustable Support Leg Height | 850mm to 1000mm High |
| Roller Pitch | 75mm Pitch: 20 Rollers (1500mm Long) and 40 Rollers (3000mm Long) 150mm Pitch: 10 Rollers (1500mm Long) and 20 Rollers (3000mm Long) 300mm Pitch: 5 Rollers (1500mm Long) and 10 Rollers (3000mm Long) |
| Loading Capacity per Roller | 50kg/roller for 300mm Wide 50kg/roller for 400mm Wide 40kg/roller for 600mm Wide |
| Maximum Load Limits for the Beds | 400 kg UDL with 2 adjustable support legs 1000 kg UDL with 3 adjustable support legs |
| Frame Finish | Powder Coated Blue Frame |
| Roller Finish | Zinc Plated Rollers |
