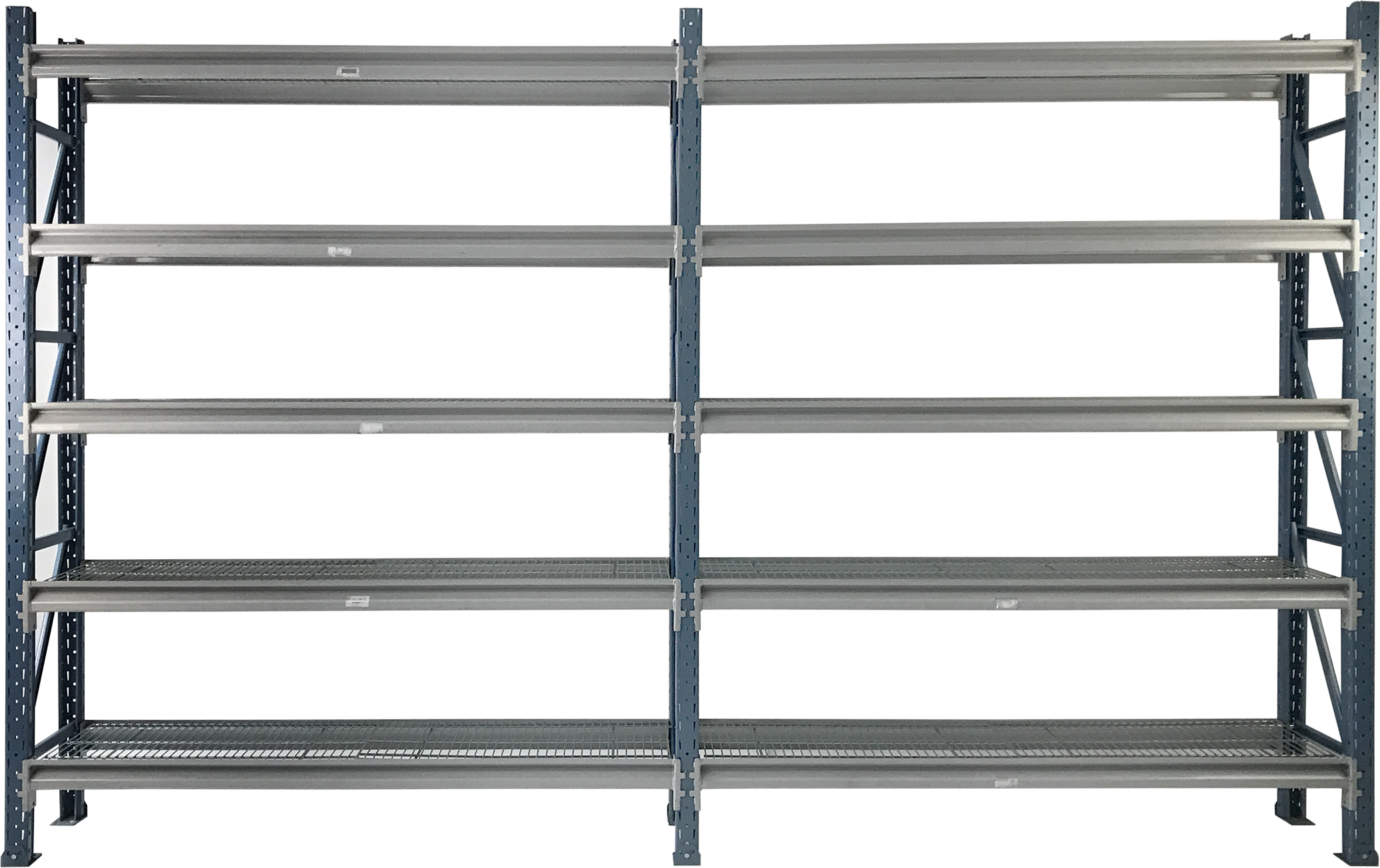

Longspan Shelving
Ezyspan branded Longspan is a Storage Solution product offering a light weight, easily adjustable shelving solution with strength and durability. Ezyspan branded Longspan is a heavy duty 500kg per shelf, versatile solution which allows it to be suitable for a variety of applications. Ie: Home, Garage, warehouse & workshops.
The easy clip together construction and the frames being supplied preassembled allows for a faster installation.
Retail and Display ✔
Wholesale ✔
Storage / Archive ✔
Warehouse ✔
Office ✔
Garage ✔
Home ✔
- 500kg per Level, SAFE Working Load
- 5 Levels Per Bay (other configurations available on request)
- Mesh Infills
- Frame Pitch of 50mm allows for easy shelf adjustments
- Free Standing
- End Frames pre-assembled - Can be cut to your desired height - Charges apply
- Beams clip into place
- Mesh locates and is retained within beam section
- Australia wide delivery available
Dimensions
| Height | 2400 mm |
| Width | 1800 mm (internal left to right) |
| Depth | 450 mm (front to back) |
Overall Width Dimensions
| Starter Bay (Run of 2 Bays) | 3830 mm |
| Each Additional Bay | 1880 mm |
Definition of a Starter Bay
Commonly described as an “individual bay” or “free standing bay” the Starter bay consists of Two end frames or uprights and is used as the first bay in a run or block of shelving or racking.

Definition of a Add On Bay
Commonly described as a “Carry on bay” the Add On bay consists of only one end frame or upright as it is utilized as an “additional bay”. The Carry On bay links to a Starter bay or block of shelving / racking for the necessary components required to stand it. The use of Add On bays is a cost effective way of utilizing common components and reducing the overall costs of a Shelving / Racking structure, block or run.
